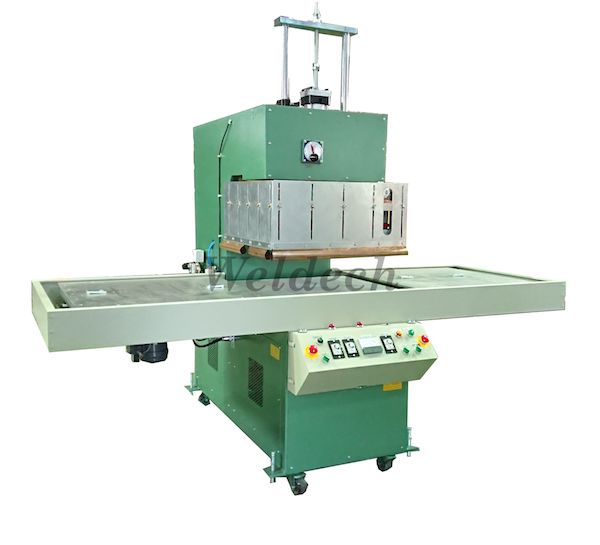

High Frequency Blister Packing Machine Высокочастотная блистерная упаковочная машина

High Frequency Blister Packing Machine Высокочастотная блистерная упаковочная машина

Код продукта: PW-401CMS+H, PW-401CAS+H, PW-401C+H, PW-501CMS+H, PW-501CAS+H, PW-501C+H, PW-601CMS+H, PW-601CAS+H, PW-601C+H, PW-801CMS+H, PW-801CAS+H, PW-801C+H, PW-1001CMS+H, PW-1001CAS+H, PW-1001C+H



  • APPLICATIONS
    • Sealing for PVC or PET-G blister.
  • ПРИЛОЖЕНИЯ
    • Уплотнение для блинов из ПВХ или ПЭТ-Г.
Особенности:





См. более полное подробно
Model PW-401CMS+H,
PW-401CAS+H,
PW-401C+H
PW-501CMS+H,
PW-501CAS+H,
PW-501C+H
PW-601CMS+H,
PW-601CAS+H,
PW-601C+H
PW-801CMS+H,
 PW-801CAS+H,
PW-801C+H
PW-1001CMS+H, PW-1001CAS+H,
PW-1001C+H
H.F. Out-put Power 4 KW 5 KW 6 KW 8 KW 10 KW
Oscillation Frequency 40.68MHZ 27.12 MHZ 27.12 MHZ 27.12 MHZ 27.12MHZ
Power Supply AC 220/380/400/
415/440V 3Dia. Voltage to be arranged at instruction
AC 220/380/400/
415/440V 3Dia. Voltage to be arranged at instruction
AC 220/380/400/
415/440V 3Dia. Voltage to be arranged at instruction
AC 220/380/400/
415/440V 3Dia. Voltage to be arranged at instruction
AC 220/380/400/
415/440V 3Dia. Voltage to be arranged at instruction
Input Power 6.5KVA 8.5KVA 10KVA 15KVA 18 KVA
Oscillation Tube E3062 7T85RB 7T69RB 7T69RB E3069
Rectifier Silicon Rectifier Silicon Rectifier Silicon Rectifier Silicon Rectifier Silicon Rectifier
Arc Suppressor Highly Sensitive Sparklet Preventor Highly Sensitive Sparklet Preventor Highly Sensitive Sparklet Preventor Highly Sensitive Sparklet Preventor Highly Sensitive Sparklet Preventor
Upper Plate (mm) 250 x 350 300 x 450 500 x 600 550 x 650 550 x 650
Lower Plate (mm) 300 x 400 300 x 500 600 x 700 600 x 700 600 x 700
Press Stroke (mm) 150mm 150mm 150mm 150mm 150mm
Slide Table Type CMS: Manual
CAS: Automatic
C: No Slide board
CMS: Manual
CAS: Automatic
C: No Slide board
CMS: Manual
CAS: Automatic
C: No Slide board
CMS: Manual
CAS: Automatic
C: No Slide board
CMS: Manual
CAS: Automatic
C: No Slide board
Welding Head Operation Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic
